- 規格型號：84654670
- 頻率：32.768KHz

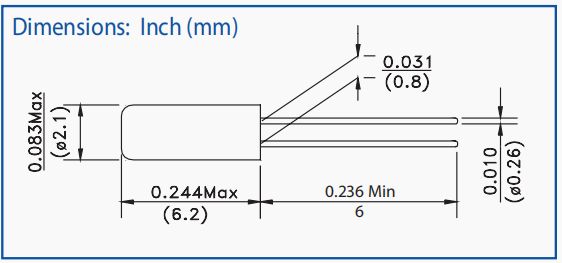

- 尺寸：2*6
- 產品描述：ABRACON音叉晶體,AB26T環保晶振,AB26T-32.768KHZ-6智能計時器晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，AB26T-32.768KHZ-6晶振，無源晶振，音叉晶振，32.768KHz晶振，美國晶振，高品質晶振，低損耗...

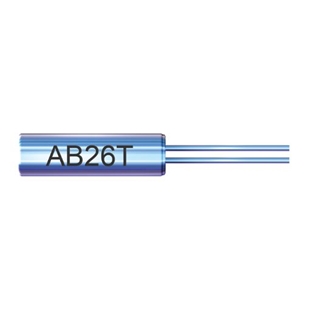

ABRACON音叉晶體,AB26T環保晶振,AB26T-32.768KHZ-6智能計時器晶振
.jpg)
ABRACON音叉晶體,AB26T環保晶振,AB26T-32.768KHZ-6智能計時器晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，AB26T-32.768KHZ-6晶振，無源晶振，音叉晶振，32.768KHz晶振，美國晶振，高品質晶振，低損耗晶振，艾博康晶振，高精度晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備，便攜式收音機和MP3播放器

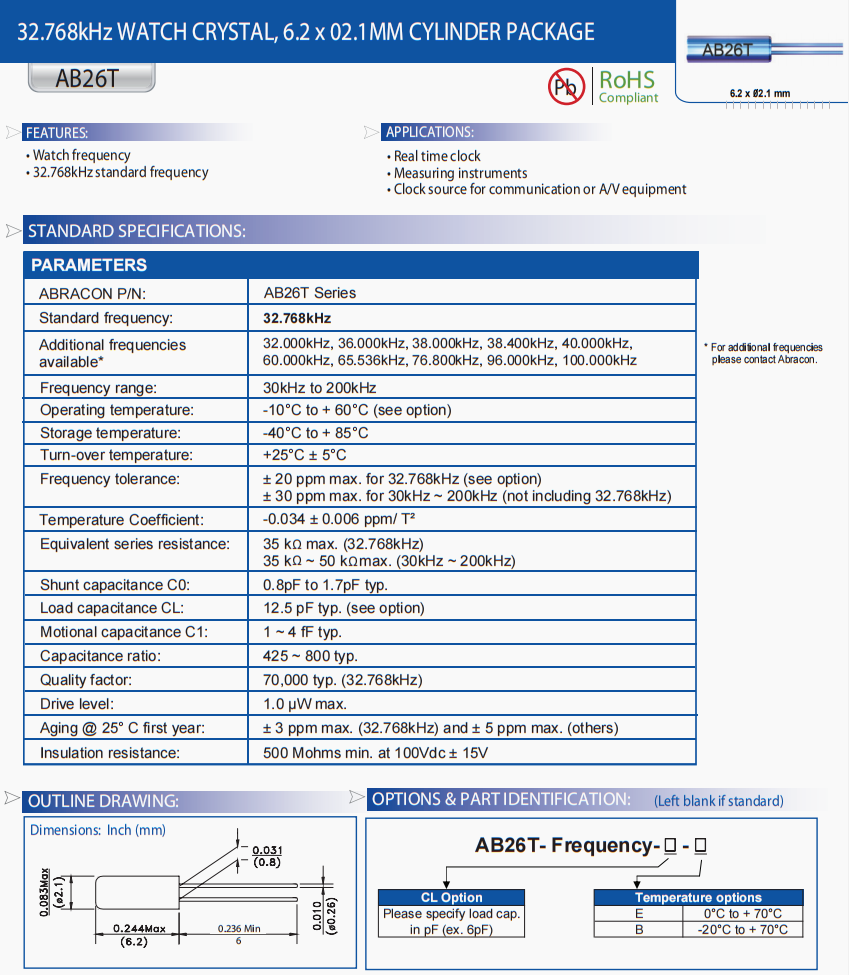

| 參數 | |
| ABRACON P/N: | AB26T Series |
| 標準頻率 | 32.768kHz |
| 工作溫度 | -10°C to + 60°C (see option) |
| 儲存溫度 | -40°C to + 85°C |
| 周轉溫度 | +25°C ± 5°C |
| 頻率容差 |
± 20 ppm max. for 32.768kHz (see option) ± 30 ppm max. for 30kHz ~ 200kHz (not including 32.768kHz) |
| 溫度系數 | -0.034 ± 0.006 ppm/ T² |
| 等效串聯電阻 |
35 k? max. (32.768kHz) 35 k? ~ 50 k? max. (30kHz ~ 200kHz) |
| 分流電容 | 0.8pF to 1.7pF typ. |
| 負載電容 | 12.5 pF typ. (see option) |
| 運動電容 | 1 ~ 4 fF typ. |
| 電容比 | 425 ~ 800 typ. |
| 質量因數 | 70,000 typ. (32.768kHz) |
| 驅動電平 | 1.0 µW max. |
| 老化 | ± 3 ppm max. (32.768kHz) and ± 5 ppm max. (others) |
| 絕緣電阻 | 500 Mohms min. at 100Vdc ± 15V |

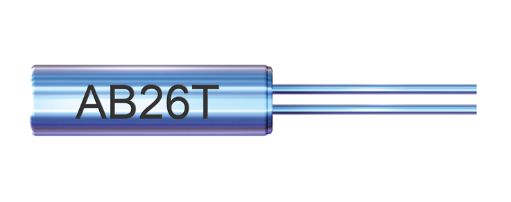

ABRACON音叉晶體,AB26T環保晶振,AB26T-32.768KHZ-6智能計時器晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| AB26T-32.768KHZ | Abracon | AB26T | 32.768 kHz | ±20ppm | 12.5 pF | |
| AB26T-32.768KHZ-6 | Abracon | AB26T | 32.768 kHz | ±20ppm | 6 pF | |
| AB26T-32.768KHZ-E | Abracon | AB26T | 32.768 kHz | ±20ppm | 12.5 pF | |
| AB26TRB-32.768KHZ-6-TR | Abracon | AB26TRB | 32.768 kHz | ±20ppm | 6 pF | |
| AB26TRB-32.768KHZ-T | Abracon | AB26TRB | 32.768 kHz | ±20ppm | 12.5 pF | |
| AB26TRQ-32.768KHZ-T | Abracon | AB26TRQ | 32.768 kHz | ±20ppm | 12.5 pF | |
| AB308-10.000MHZ | Abracon | AB308 | 10 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-12.000MHZ | Abracon | AB308 | 12 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-12.288MHZ | Abracon | AB308 | 12.288 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-12.352MHZ | Abracon | AB308 | 12.352 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-14.31818MHZ | Abracon | AB308 | 14.31818 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-14.7456MHZ | Abracon | AB308 | 14.7456 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-16.000MHZ | Abracon | AB308 | 16 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-16.257MHZ | Abracon | AB308 | 16.257 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-16.667MHZ | Abracon | AB308 | 16.667 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-20.000MHZ | Abracon | AB308 | 20 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-26.540MHZ | Abracon | AB308 | 26.54 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-28.000MHZ | Abracon | AB308 | 28 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-28.6363MHZ | Abracon | AB308 | 28.6363 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-29.4912MHZ | Abracon | AB308 | 29.4912 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-4.000MHZ | Abracon | AB308 | 4 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-4.9152MHZ | Abracon | AB308 | 4.9152 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-5.000MHZ | Abracon | AB308 | 5 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-53.125MHZ | Abracon | AB308 | 53.125 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-6.000MHZ | Abracon | AB308 | 6 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-7.3728MHZ | Abracon | AB308 | 7.3728 MHz | ±50ppm | ±30ppm | 16 pF |
| AB308-8.000MHZ | Abracon | AB308 | 8 MHz | ±50ppm | ±30ppm | 16 pF |
| AB38T-32.768KHZ | Abracon | AB38T | 32.768 kHz | ±20ppm | 12.5 pF | |
| AB38T-32.768KHZ-B7 | Abracon | AB38T | 32.768 kHz | ±15ppm | 12.5 pF | |
| ABC2-10.000MHZ-4-T | Abracon | ABC2 | 10 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-10.000MHZ-D4Y-T | Abracon | ABC2 | 10 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-11.0592MHZ-4-T | Abracon | ABC2 | 11.0592 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-11.2896MHZ-4-T | Abracon | ABC2 | 11.2896 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-12.000MHZ-4-T | Abracon | ABC2 | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-12.288MHZ-4-T | Abracon | ABC2 | 12.288 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-14.31818MHZ-4-T | Abracon | ABC2 | 14.31818 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-14.7456MHZ-4-T | Abracon | ABC2 | 14.7456 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-14.7456MHZ-D4Y-T | Abracon | ABC2 | 14.7456 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-15.000MHZ-4-T | Abracon | ABC2 | 15 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-15.360MHZ-4-T | Abracon | ABC2 | 15.36 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-16.000MHZ-4-T | Abracon | ABC2 | 16 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-16.666MHZ-4-T | Abracon | ABC2 | 16.666 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-18.432MHZ-4-T | Abracon | ABC2 | 18.432 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-19.440MHZ-4-T | Abracon | ABC2 | 19.44 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-20.000MHZ-4-T | Abracon | ABC2 | 20 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-20.480MHZ-4-T | Abracon | ABC2 | 20.48 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-20.480MHZ-BY-T | Abracon | ABC2 | 20.48 MHz | ±30ppm | ±50ppm | 18 pF |
| ABC2-22.1184MHZ-4-T | Abracon | ABC2 | 22.1184 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-24.000MHZ-4-T | Abracon | ABC2 | 24 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-24.576MHZ-4-T | Abracon | ABC2 | 24.576 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-25.000MHZ-4-T | Abracon | ABC2 | 25 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-3.579545MHZ-4-T | Abracon | ABC2 | 3.579545 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-3.6864MHZ-4-T | Abracon | ABC2 | 3.6864 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-4.000MHZ-4-T | Abracon | ABC2 | 4 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-4.000MHZ-D-T | Abracon | ABC2 | 4 MHz | ±50ppm | ±50ppm | 18 pF |
| ABC2-4.096MHZ-4-T | Abracon | ABC2 | 4.096 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-4.9152MHZ-4-T | Abracon | ABC2 | 4.9152 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-5.000MHZ-4-T | Abracon | ABC2 | 5 MHz | ±50ppm | ±30ppm | 18 pF |
| ABC2-6.000MHZ-4-T | Abracon | ABC2 | 6 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-6.144MHZ-4-T | Abracon | ABC2 | 6.144 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-7.3728MHZ-4-T | Abracon | ABC2 | 7.3728 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-7.680MHZ-4-T | Abracon | ABC2 | 7.68 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-8.000MHZ-4-T | Abracon | ABC2 | 8 MHz | ±30ppm | ±30ppm | 18 pF |
| ABC2-9.8304MHZ-4-T | Abracon | ABC2 | 9.8304 MHz | ±30ppm | ±30ppm | 18 pF |
