- 規格型號：5321680
- 頻率：32.768KHZ
- 尺寸：3.2*1.5mm
- 產品描述：微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器,Micro晶振,瑞士晶振,無源晶振,貼片諧振器,SMD晶振是一款貼片型的音叉晶體,尺寸為3215mm,頻率32.768KHZ,精度20ppm,負載電容9pF,工作溫度-55~+125C具有小...
微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器
航欄(10).jpg)
微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器,Micro晶振,瑞士晶振,無源晶振,貼片諧振器,SMD晶振是一款貼片型的音叉晶體,尺寸為3215mm,頻率32.768KHZ,精度20ppm,負載電容9pF,工作溫度-55~+125°C具有小型,薄型,輕型的貼片晶振表面型音叉式石英晶體諧振器,產品具有優良的耐熱性,耐環境特性,可發揮晶振優良的電氣特性,符合RoHS規定,產品被廣泛用于無線網絡,智能家居等領域.
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC晶振的真空封裝技術：是指石英晶振在真空封裝區域內進行封裝.1.防止外界氣體進入組件體內受到污染和增加應力的產生；2.使晶振組件在真空下電阻減小；3.氣密性高.此技術為研發及生產超小型、超薄型石英晶振必須攻克的關鍵技術之一.微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC晶振的真空封裝技術：是指石英晶振在真空封裝區域內進行封裝.1.防止外界氣體進入組件體內受到污染和增加應力的產生；2.使晶振組件在真空下電阻減小；3.氣密性高.此技術為研發及生產超小型、超薄型石英晶振必須攻克的關鍵技術之一.微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器

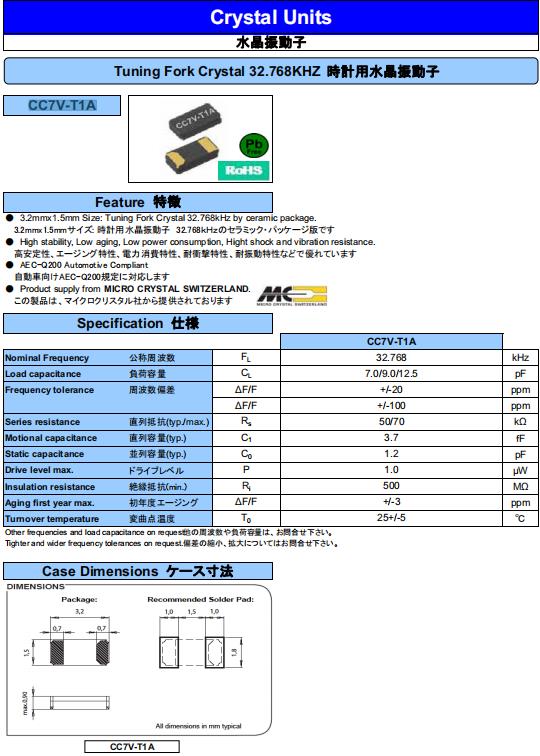

CC7V-T1A-32.768k-9pF-20PPM-TC-QA晶振 參數表| 微晶晶振規格 | 單位 | CC7V-T1A晶振頻率范圍 | 石英晶振基本條件 |
| 標準頻率 | f_nom | 32.768KHZ | 標準頻率 |
| 儲存溫度 | T_stg | -55°C ～ +125°C | 裸存 |
| 工作溫度 | T_use | -0 to +70°C | 標準溫度 |
| 激勵功率 | DL | 0.1mW Max. | 推薦:1μW ～ 100μW |
| 頻率公差 | f_— l | ±20 × 10-6 |
+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,http://www.nliguihua5.com.cn/ |
| 頻率溫度特征 | f_tem | ±30 × 10-6/-10°C ～ +60°C | 超出標準的規格請聯系我們. |
| 負載電容 | CL | 9pF ～ ∞ | 不同負載要求,請聯系我們. |
| 串聯電阻(ESR) | R1 | 50 Ohms | -40°C — +85°C, DL = 100μW |
| 頻率老化 | f_age | ±5 × 10-6 / year Max. | +25°C,第一年 |
.jpg)

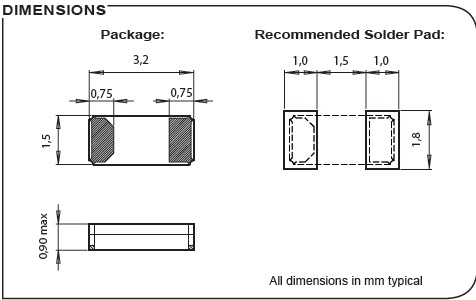

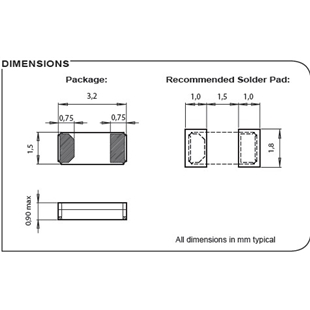

微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器 尺寸圖
CC7V-T1A-32.768k-9pF-20PPM-TC-QA晶振 使用注意事項自動安裝時的沖擊：
石英晶振自動安裝和真空化引發的沖擊會破壞晶振產品特性并影響這些產品。請?jiān)O(shè)置安裝條件以盡可能將沖擊降至最低,并確保在安裝前未對晶振特性產生影響。條件改變時,請重新檢查安裝條件。同時,在安裝前后,請確保石英晶振產品未撞擊機器或其他電路板等。
每個封裝類型的注意事項
陶瓷包裝晶振與SON產品微晶晶振CC7V-T1A,CC7V-T1A-32.768k-9pF-20PPM-TC-QA貼片諧振器
在焊接陶瓷晶振和SON產品 (陶瓷包裝是指晶振外觀采用陶瓷制品) 之后,彎曲電路板會因機械應力而導致焊接部分剝落或封裝分裂（開裂）。尤其在焊接這些產品之后進行電路板切割時,務必確保在應力較小的位置布局晶體并采用應力更小的切割方法。
陶瓷包裝石英晶振
在一個不同擴張系數電路板（環氧玻璃）上焊接陶瓷封裝石英貼片晶振時,在溫度長時間重復變化時可能導致端子焊接部分發生斷裂,請事先檢查焊接特性。
| 制造商零件編號 | 制造商 | 描述 | 產品類型 | 頻率 | 頻率穩定性 | 容差 | 最小工作溫度 | 最大工作溫度 |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 100 kHz | 100 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| 202684-MC03 | Micro Crystal | 晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| 202273-EA00 | Micro Crystal | 標準時鐘振蕩器 128MHz 20ppm -55C +85C | Clock Oscillators | 128 MHz | 30 PPM | - 55 C | + 85 C | |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 125 C | |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | 微晶晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 125 C | |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 125 C |
