首頁歐美晶振Abracon晶振ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振

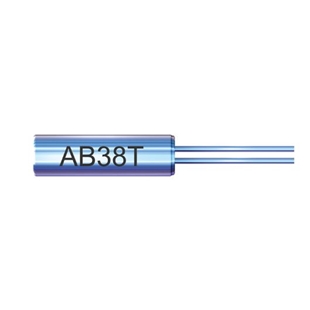

    ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振

  • 規格型號：31267312
  • 頻率：32.768KHz
  • 尺寸：3*8
  • PDF
  • 產品描述：ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振，美國艾博康晶振公司，艾博康晶振，進口晶振，AB38T-32.768KHZ-B7晶振，無源晶振，音叉晶振，32.768KHz晶振，美國晶振，高品質晶振，石英晶體，低損...


ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振，美國艾博康晶振公司，艾博康晶振，進口晶振，AB38T-32.768KHZ-B7晶振，無源晶振，音叉晶振，32.768KHz晶振，美國晶振，高品質晶振，石英晶體，低損耗晶振，Abracon晶振，高精度晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備，便攜式收音機和MP3播放器

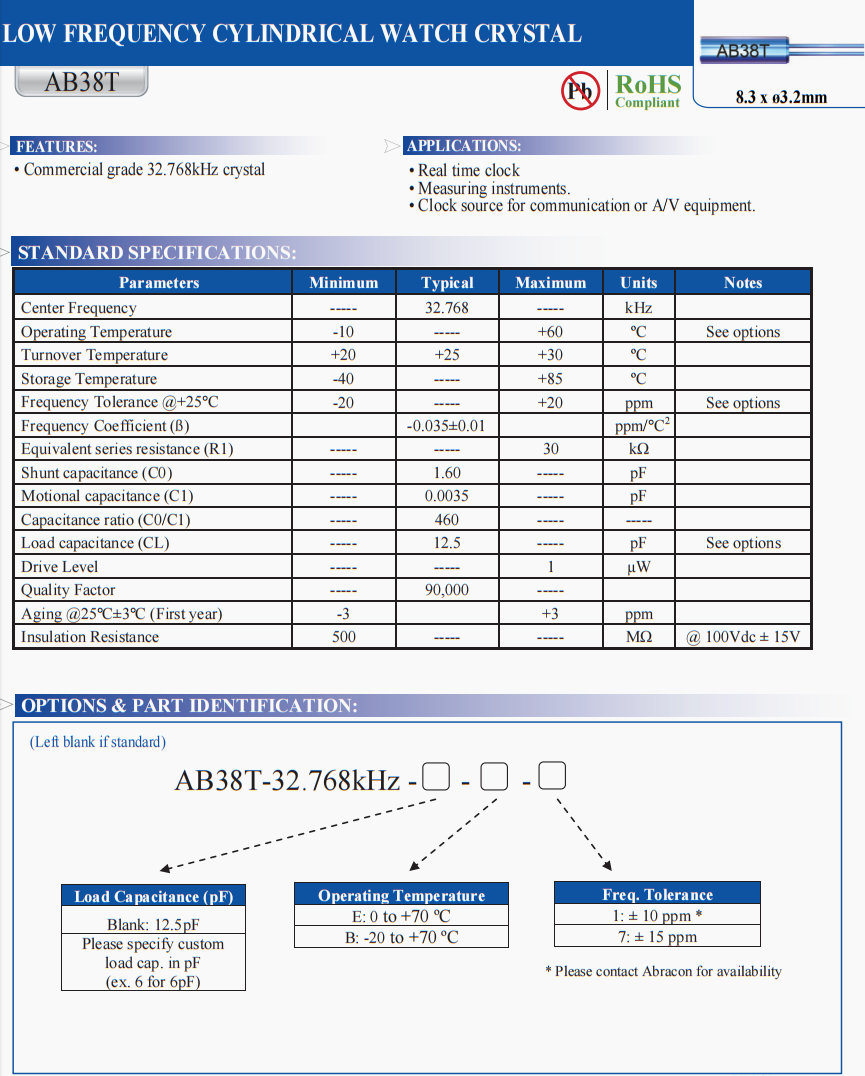

ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振
參數 Minimum Typical Maximum Units Notes
頻率 ----- 32.768 ----- kHz
工作溫度 - 10 ----- +60 ºC See options
周轉溫度 +20 +25 +30 ºC
儲存溫度 -40 ----- +85 ºC
頻率容差 -20 ----- +20 ppm See options
頻率系數   -0.035±0.01   ppm/°C2
等效串聯電阻 ----- ----- 30 k?
分流電容 ----- 1.60 ----- pF
運動電容 ----- 0.0035 ----- pF
電容比 ----- 460 ----- -----
負載電容 ----- 12.5 ----- pF See options
驅動電平 ----- ----- 1 µW
質量系數 ----- 90,000  -----
老化 -3   +3 ppm
絕緣電阻 500 ----- ----- M? @ 100Vdc ± 15V

ABRACON高精度晶體,AB38T-32.768KHZ-B7表晶,AB38T智能穿戴設備晶振


編碼 品牌 型號 頻率 頻率穩定度 頻率容差 負載
AB26T-32.768KHZ Abracon AB26T 32.768 kHz   ±20ppm 12.5 pF
AB26T-32.768KHZ-6 Abracon AB26T 32.768 kHz   ±20ppm 6 pF
AB26T-32.768KHZ-E Abracon AB26T 32.768 kHz   ±20ppm 12.5 pF
AB26TRB-32.768KHZ-6-TR Abracon AB26TRB 32.768 kHz   ±20ppm 6 pF
AB26TRB-32.768KHZ-T Abracon AB26TRB 32.768 kHz   ±20ppm 12.5 pF
AB26TRQ-32.768KHZ-T Abracon AB26TRQ 32.768 kHz   ±20ppm 12.5 pF
AB308-10.000MHZ Abracon AB308 10 MHz ±50ppm ±30ppm 16 pF
AB308-12.000MHZ Abracon AB308 12 MHz ±50ppm ±30ppm 16 pF
AB308-12.288MHZ Abracon AB308 12.288 MHz ±50ppm ±30ppm 16 pF
AB308-12.352MHZ Abracon AB308 12.352 MHz ±50ppm ±30ppm 16 pF
AB308-14.31818MHZ Abracon AB308 14.31818 MHz ±50ppm ±30ppm 16 pF
AB308-14.7456MHZ Abracon AB308 14.7456 MHz ±50ppm ±30ppm 16 pF
AB308-16.000MHZ Abracon AB308 16 MHz ±50ppm ±30ppm 16 pF
AB308-16.257MHZ Abracon AB308 16.257 MHz ±50ppm ±30ppm 16 pF
AB308-16.667MHZ Abracon AB308 16.667 MHz ±50ppm ±30ppm 16 pF
AB308-20.000MHZ Abracon AB308 20 MHz ±50ppm ±30ppm 16 pF
AB308-26.540MHZ Abracon AB308 26.54 MHz ±50ppm ±30ppm 16 pF
AB308-28.000MHZ Abracon AB308 28 MHz ±50ppm ±30ppm 16 pF
AB308-28.6363MHZ Abracon AB308 28.6363 MHz ±50ppm ±30ppm 16 pF
AB308-29.4912MHZ Abracon AB308 29.4912 MHz ±50ppm ±30ppm 16 pF
AB308-4.000MHZ Abracon AB308 4 MHz ±50ppm ±30ppm 16 pF
AB308-4.9152MHZ Abracon AB308 4.9152 MHz ±50ppm ±30ppm 16 pF
AB308-5.000MHZ Abracon AB308 5 MHz ±50ppm ±30ppm 16 pF
AB308-53.125MHZ Abracon AB308 53.125 MHz ±50ppm ±30ppm 16 pF
AB308-6.000MHZ Abracon AB308 6 MHz ±50ppm ±30ppm 16 pF
AB308-7.3728MHZ Abracon AB308 7.3728 MHz ±50ppm ±30ppm 16 pF
AB308-8.000MHZ Abracon AB308 8 MHz ±50ppm ±30ppm 16 pF
AB38T-32.768KHZ Abracon AB38T 32.768 kHz   ±20ppm 12.5 pF
AB38T-32.768KHZ-B7 Abracon AB38T 32.768 kHz   ±15ppm 12.5 pF
ABC2-10.000MHZ-4-T Abracon ABC2 10 MHz ±30ppm ±30ppm 18 pF
ABC2-10.000MHZ-D4Y-T Abracon ABC2 10 MHz ±30ppm ±30ppm 18 pF
ABC2-11.0592MHZ-4-T Abracon ABC2 11.0592 MHz ±30ppm ±30ppm 18 pF
ABC2-11.2896MHZ-4-T Abracon ABC2 11.2896 MHz ±30ppm ±30ppm 18 pF
ABC2-12.000MHZ-4-T Abracon ABC2 12 MHz ±30ppm ±30ppm 18 pF
ABC2-12.288MHZ-4-T Abracon ABC2 12.288 MHz ±30ppm ±30ppm 18 pF
ABC2-14.31818MHZ-4-T Abracon ABC2 14.31818 MHz ±30ppm ±30ppm 18 pF
ABC2-14.7456MHZ-4-T Abracon ABC2 14.7456 MHz ±30ppm ±30ppm 18 pF
ABC2-14.7456MHZ-D4Y-T Abracon ABC2 14.7456 MHz ±30ppm ±30ppm 18 pF
ABC2-15.000MHZ-4-T Abracon ABC2 15 MHz ±30ppm ±30ppm 18 pF
ABC2-15.360MHZ-4-T Abracon ABC2 15.36 MHz ±30ppm ±30ppm 18 pF
ABC2-16.000MHZ-4-T Abracon ABC2 16 MHz ±30ppm ±30ppm 18 pF
ABC2-16.666MHZ-4-T Abracon ABC2 16.666 MHz ±30ppm ±30ppm 18 pF
ABC2-18.432MHZ-4-T Abracon ABC2 18.432 MHz ±30ppm ±30ppm 18 pF
ABC2-19.440MHZ-4-T Abracon ABC2 19.44 MHz ±30ppm ±30ppm 18 pF
ABC2-20.000MHZ-4-T Abracon ABC2 20 MHz ±30ppm ±30ppm 18 pF
ABC2-20.480MHZ-4-T Abracon ABC2 20.48 MHz ±30ppm ±30ppm 18 pF
ABC2-20.480MHZ-BY-T Abracon ABC2 20.48 MHz ±30ppm ±50ppm 18 pF
ABC2-22.1184MHZ-4-T Abracon ABC2 22.1184 MHz ±30ppm ±30ppm 18 pF
ABC2-24.000MHZ-4-T Abracon ABC2 24 MHz ±30ppm ±30ppm 18 pF
ABC2-24.576MHZ-4-T Abracon ABC2 24.576 MHz ±30ppm ±30ppm 18 pF
ABC2-25.000MHZ-4-T Abracon ABC2 25 MHz ±30ppm ±30ppm 18 pF
ABC2-3.579545MHZ-4-T Abracon ABC2 3.579545 MHz ±50ppm ±30ppm 18 pF
ABC2-3.6864MHZ-4-T Abracon ABC2 3.6864 MHz ±50ppm ±30ppm 18 pF
ABC2-4.000MHZ-4-T Abracon ABC2 4 MHz ±50ppm ±30ppm 18 pF
ABC2-4.000MHZ-D-T Abracon ABC2 4 MHz ±50ppm ±50ppm 18 pF
ABC2-4.096MHZ-4-T Abracon ABC2 4.096 MHz ±50ppm ±30ppm 18 pF
ABC2-4.9152MHZ-4-T Abracon ABC2 4.9152 MHz ±50ppm ±30ppm 18 pF
ABC2-5.000MHZ-4-T Abracon ABC2 5 MHz ±50ppm ±30ppm 18 pF
ABC2-6.000MHZ-4-T Abracon ABC2 6 MHz ±30ppm ±30ppm 18 pF
ABC2-6.144MHZ-4-T Abracon ABC2 6.144 MHz ±30ppm ±30ppm 18 pF
ABC2-7.3728MHZ-4-T Abracon ABC2 7.3728 MHz ±30ppm ±30ppm 18 pF
ABC2-7.680MHZ-4-T Abracon ABC2 7.68 MHz ±30ppm ±30ppm 18 pF
ABC2-8.000MHZ-4-T Abracon ABC2 8 MHz ±30ppm ±30ppm 18 pF
ABC2-9.8304MHZ-4-T Abracon ABC2 9.8304 MHz ±30ppm ±30ppm 18 pF
